Separation
Due to the increased requirements, Systemtechnik Hölzer GmbH offers solutions for manual, semi-automatic as well as fully
automated PCB depaneling with a mix of router, saw and laser for demanding cutting processes.
Printed circuit board panels of different materials as well as varying material thicknesses are to be cut with the same cutting quality.
- Plastics
- FR2/ FR4
- Ceramics
In addition, the manufacturing process should be as stress-free and dust-free as possible in order not to damage the sensitive components.
- Aluminium
- Copper
- Flex foil
A short process and the ability to change products quickly and conveniently are becoming increasingly important.

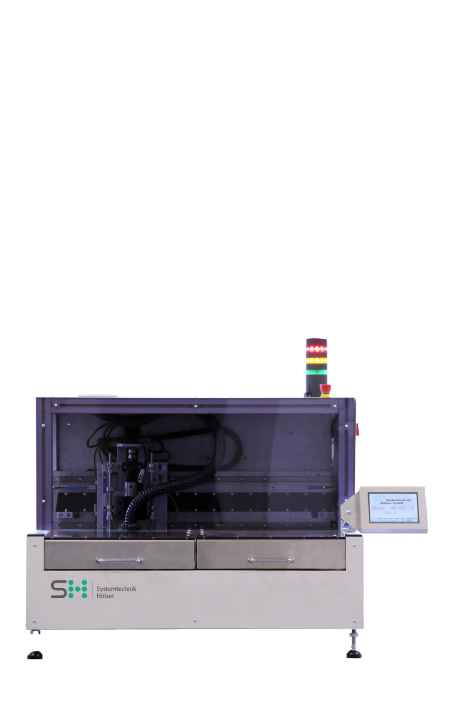

LOW Mini
Small, flexible panel separator for connecting the remaining web with a variable work area.
More
LOW Standard
Compact panel separator for residual web connection and pre-scored circuit boards.
More
LOW XL
Depaneling machine with a large working area for residual web connection with pre-scored circuit boards.
More
LOW Laser
Compact depanelizer for flex foils, residual web connection and pre-scored circuit boards.
More
INT Inline
Fully automatic panel separator for residual web connection of pre-scored circuit boards.
More
Trayloader
Special solutions for processing KLT and Trays.
More
