LAS 22 Table laser

CO2

Faser

MOPA

UV

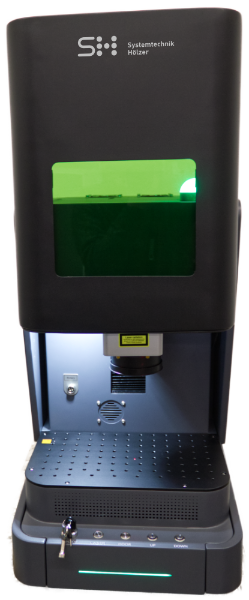

The LAS 22 is a compact tabletop unit with a small working area, ideally suited for small parts. Due to its small size, the system is very practical and can be used anywhere.

The universal laser marking system LAS 22 from Systemtechnik Hölzer GmbH can be used for a very wide range of marking applications. With the integrated fiber laser, you can mark almost all materials such as steel, carbide, aluminum and plastics.

Depending on the requirements, the system can be equipped with a 20, 30 or 50 watt fiber laser. For permanent marking, the use of the laser is necessary in many industries.

With the powerful laser software, texts, numbers, 2D codes, QR codes and logos can be realized with just a few clicks without extensive programming knowledge. Serial and article numbers are automatically incremented by the software after prior setting. In addition, the software can read data (variable information such as drawing numbers, project designations, etc.) from existing tables and automatically transfer them to predefined areas. The use of a hand scanner is also possible.

The standard equipment includes a laptop with Windows operating system and laser software. Optionally, the laser model LAS 22 can be equipped with a rotary axis (3-jaw chuck) for marking cylindrical parts.

Product data

  • Fibre laser 20W (optional: 30W, 50W)
  • Laser class 1
  • Wavelength 1064nm
  • Marking field size 110x110 mm
  • EZCAD marking software in German / English
  • Pilot laser (simple preview)
  • Focus finder (simple focus adjustment)
  • Component height approx. 100 mm
  • Electrically adjustable Z-axis (adjustment of working plane)
  • Electric door with pinch stop on contact
  • Workspace approx. 310x190mm
  • Welded sheet steel construction
  • Connection 230V
  • Air-cooled
  • Notebook with cable, operating system Windows (German or English)
  • Dimensions: 600x 400x 690 mm (LxWxH)
  • Weight approx. 47 kg
